Features

  • 250m Kevlar Reinforced Cable
  • Manual Cable Drum
  • 150mm 6 Wheeled crawler, for pipes from 150mm to 400mm
  • Battery Powered Control Unit
  • CAM026 Pan & Rotate Head



Description

Mini-Cam’s NEW Proteus Lite brings together, the tried and trusted performance and reliability of the Proteus family, in a value for money, entry level system. Proteus Lite is the ideal starter kit for a one-man operation, integration into a small inspection van, or a low-cost option for larger companies to use for off-road, remote locations. Proteus Lite provides all the resources required to undertake efficient, easy to perform inspections, and withProPIPE+ and WinCan Embedded software as standard, you can deliver accurate, detailed reports, instantly on-site.

The system comprises a CCU208 Control Unit, RMPL250 Reel and a CPL150 Crawler.​

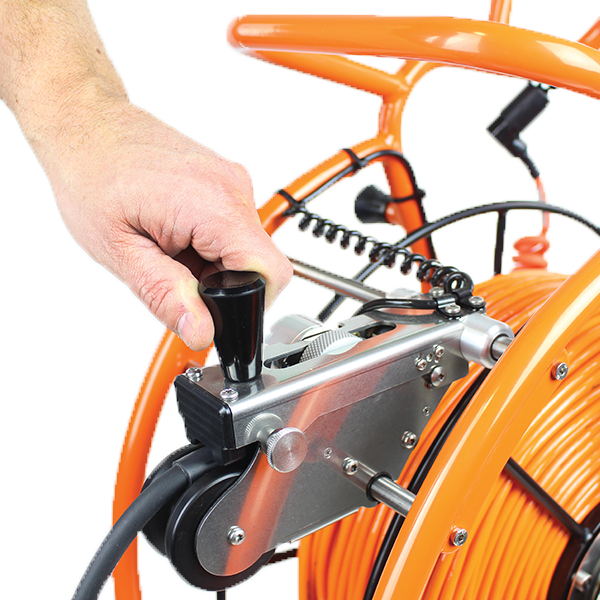

Designed in-house, this sturdy cable reel is Mini-Cam’s latest innovation. The core of the Lite system, RMPL250 is engineered to the same exacting standards as our mainline Proteus equipment. Compact, space-saving design, robust construction with a powder coated finish, and equipped with easy-to-use features including a manually operated cable layering arm and meterage roller, which is easily removed for cleaning. The friction brake can be fully locked, unlocked or applied as a friction brake to avoid unwanted pay-off of the cable, and a sturdy winding handle folds away neatly to save space.



The cable reel comes complete with 250 metres of 6.8mm Kevlar reinforced cable, and sports our signature “cow-horn” CCU locators, enabling a secure quick fit of the Proteus Lite control unit ready for work. For added flexibility an optional Tilt Table allows adjustment of the control unit position, to give the user optimal screen viewing and keyboard positions.

Mini-Cam Proteus Lite Crawler System

£23,430.00Price
  • CCU208 Controller

    Video Format

    PAL

    Battery

    Lithium-Ion (CCU stand alone) 6 hours

    Battery

    Lithium-Ion (CCU and Comp Coiler) 3 hours

    Charging

    Mains power (100-240 Vac) or vehicle power (12 or 24 VDC) using supplied adaptors

    Display

    10.4” XGA (1024 x 768 pixels) Sunlight viewable

    Keyboard

    Full QWERTY style membrane keyboard with arrow keys for navigation and separate joysticks for camera and crawler control

    Video Recording

    MPEG4 (WinCan compatiable)

    Image Capture

    JPEG (live or from recorded video)

    Text Overlay

    16 page (selectable text and colours)

    Internal Memory

    32GB (expandable to 128GB)

    External Media

    SDHC and USB 2.0 Memory Stick

    Language Support

    Multiple

    Connections

    Power and Cable Reel

    Environmental Rating

    IP54

    Weight

    5.5KG

    Dimensions W x H x D

    430 x 280 x 150mm

    RMPL250 Reel

    Construction

    Welded Steel

    Finish

    Powder Coated

    Distance Counter Units

    Feet, Metres

    Controls

    Friction Brake

    Weight

    29.3kg

    Dimensions W x H x D

    550 x 385 x 700

    CAM026 Pan and Rotate

    Sensor

    ¼” colour CCD with DSP

    Effective Pixels

    512 x 582

    Camera Sensor

    470 HTVL

    Sensitivity

    <1.0 Lux

    Aperture / Field of view

    F2.5 / 75º

    Image Orientation

    Auto-levelling

    Size

    74mm (2.9in) dia

    Illumination System

    6 LED

    Illumination Intensity

    Adjustable (to 12.5k Lux at 150mm)

    Construction

    Aluminium / Stainless Steel

    Pipe Compatibility

    150mm (6”) and larger

    Pipe Adaptor Kit

    6” / 8” Skids

    CPL150S Crawler

    Pipe Diameter

    150mm and larger

    Pressure Depth Rating

    1 bar (14.50psi)

    Built-in Elevator

    Manual

    Quick Change Wheel Lock



    Optional Large Wheels

    4 size options

    Multi-Frequency Sonde Transmitter



    Inclination Sensor



    Heavy Duty Connector



    Weight

    9.25kg

    Dimensions L x H x W

    320 x 85 x 100mm
